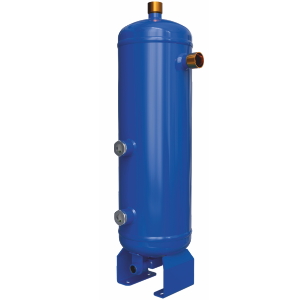

Helical oil separator with receiver
The main purpose of helical oil separators with receiver is the effective separation of oil from the refrigerant, its storage and return to the compressor. These oil separators are designed for high pressure oil return systems of multi-compressor refrigeration units.
| Model | Diameter, mm | Height, mm | In | Out | Distance A, mm | BB | Volume, L | SVP, 1 1/4" | Sight glass, 1 1/4'' | Working pressure, MPa | Testing pressure, MPa | Certificate_EAC | Declaration_EAC | Certificate_CE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FP-OSR-6-034 | 133 | 601 | 18 мм | 18 мм | 60 | 100 | 6.0 | - | 2 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e436 | - | http://www.frigopoint.com/files/download/9be31a677e44f2c |
| FP-OSR-8-078 | 159 | 615 | 7/8" | 7/8" | 60 | 100 | 8.0 | - | 2 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e436 | - | http://www.frigopoint.com/files/download/9be31a677e44f2c |
| FP-OSR-8-118 | 159 | 620 | 1 1/8" | 1 1/8" | 60 | 100 | 8.0 | - | 2 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e436 | - | http://www.frigopoint.com/files/download/9be31a677e44f2c |
| FP-OSR-12-138 | 159 | 767 | 1 3/8" | 1 3/8" | 60 | 100 | 12.0 | - | 2 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e436 | - | http://www.frigopoint.com/files/download/9be31a677e44f2c |
| FP-OSR-12-158 | 159 | 768 | 1 5/8" | 1 5/8" | 60 | 100 | 12.0 | - | 2 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e436 | - | http://www.frigopoint.com/files/download/9be31a677e44f2c |
| FP-OSR-16-218 | 190 | 726 | 2 1/8" | 2 1/8" | 90 | 110 | 16.0 | - | 2 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e436 | - | http://www.frigopoint.com/files/download/9be31a677e44f2c |
| FP-OSR-40-258 | 240 | 1140 | 2 5/8" | 2 5/8" | 160 | 160 | 40.0 | - | 2 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e436 | - | http://www.frigopoint.com/files/download/9be31a677e44f2c |
| FP-OSR(MP)-6-034 | 133 | 601 | 18 мм | 18 мм | 60 | 100 | 6.0 | - | 2 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e436 | - | http://www.frigopoint.com/files/download/9be31a677e44f2c |
| FP-OSR(MP)-8-078 | 159 | 615 | 7/8" | 7/8" | 60 | 100 | 8.0 | - | 2 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e436 | - | http://www.frigopoint.com/files/download/9be31a677e44f2c |
| FP-OSR(MP)-8-118 | 159 | 620 | 1 1/8" | 1 1/8" | 60 | 100 | 8.0 | - | 2 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e436 | - | http://www.frigopoint.com/files/download/9be31a677e44f2c |
| FP-OSR(MP)-12-138 | 159 | 767 | 1 3/8" | 1 3/8" | 60 | 100 | 12.0 | - | 2 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e436 | - | http://www.frigopoint.com/files/download/9be31a677e44f2c |
| FP-OSR(MP)-12-158 | 159 | 768 | 1 5/8" | 1 5/8" | 60 | 100 | 12.0 | - | 2 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e436 | - | http://www.frigopoint.com/files/download/9be31a677e44f2c |
| FP-OSR(MP)-16-218 | 190 | 726 | 2 1/8" | 2 1/8" | 90 | 100 | 16.0 | - | 2 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e436 | - | http://www.frigopoint.com/files/download/9be31a677e44f2c |
| FP-OSR(MP)-40-258 | 240 | 1140 | 2 5/8" | 2 5/8" | 160 | 160 | 40.0 | - | 2 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e436 | - | http://www.frigopoint.com/files/download/9be31a677e44f2c |
