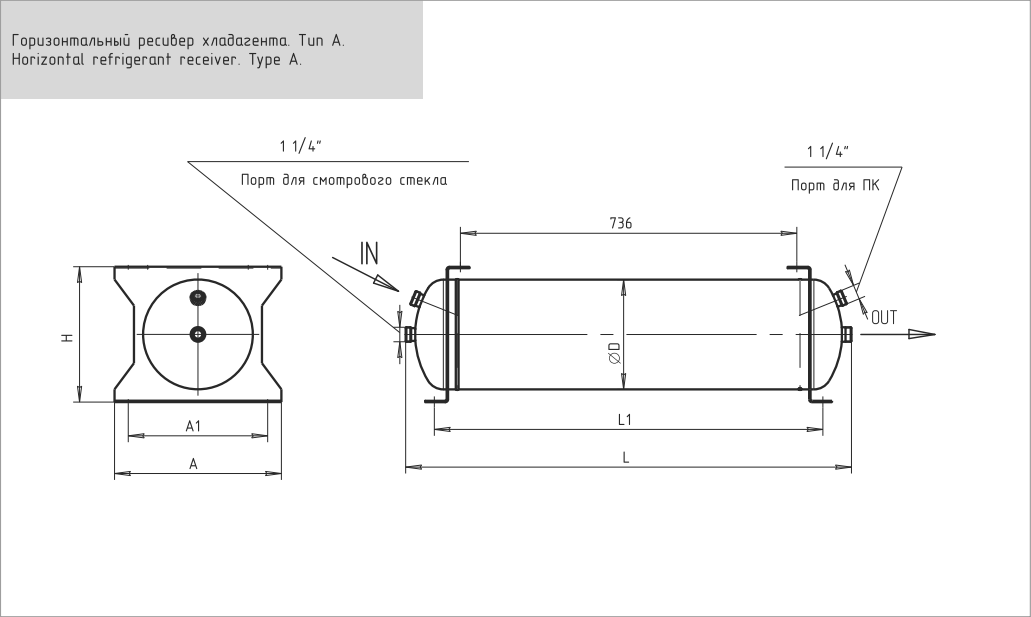

Horizontal recievers. Type A

Horizontal Type A receivers range presented by models from 12,0 to 70,0. Horizontal Type A receivers  is  a  versatile  platform  for  the  various  refrigeration
unit  configurations.
Model Diameter, mm Declaration_EAC Declaration_CE Length, mm In Out Sight glass, 1 1/4'' SVP, 1 1/4" Volume, L Working pressure, MPa Testing pressure, MPa
FP-LRH-12,0 133 /files/large/5442669f5daac95901e7c57630527f77.png /files/large/5442669f5daac95901e7c57630527f77.png 924 1" 1" - + 12.0 2,8 3,5
FP-LRH-16,0 159 /files/large/5442669f5daac95901e7c57630527f77.png 938 1" 1" - + 16.0 2,8 3,5
FP-LRH-25,0 190 /files/large/5442669f5daac95901e7c57630527f77.png 982 1 1/4" 1 1/4" 1 + 25.0 2,8 3,5
FP-LRH-40,0 240 /files/large/0304f3084385d4c6ec868cddf039f122.jpg 976 1 1/4" 1 1/4" 1 + 40.0 2,8 3,5
FP-LRH-70,0 325 /files/large/0304f3084385d4c6ec868cddf039f122.jpg 1011 1 3/4" 1 3/4" 1 + 70.0 2,8 3,5
