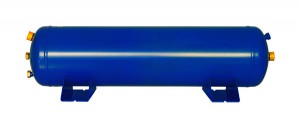

Horizontal recievers. Type B
The use of horizontal receivers implies greater freedom in the design and installation of equipment. Horizontal receiver is a universal platform for the various configuration refrigeration. Compactness receivers, simplicity and ease of mount allows using them in different refrigeration units, stations of different models of refrigeration and air-conditioning systems.
| Model | Diameter, mm | Certificate_EAC | Length, mm | In | Out | Sight glass, 1 1/4'' | SVP, 1 1/4" | Volume, L | Working pressure, MPa | Testing pressure, MPa |
|---|---|---|---|---|---|---|---|---|---|---|
| FP-LRH-100,0 | 325 | /files/large/0304f3084385d4c6ec868cddf039f122.jpg | 1310 | 1 3/4" | 1 3/4" | 2 | + | 100.0 | 2,8 | 3,5 |
| FP-LRH-120,0 | 325 | /files/large/0304f3084385d4c6ec868cddf039f122.jpg | 1560 | 1 3/4" | 1 3/4" | 2 | + | 120.0 | 2,8 | 3,5 |
| FP-LRH-160,0 | 450 | /files/large/0304f3084385d4c6ec868cddf039f122.jpg | 1165 | 2 1/4" | 2 1/4" | 2 | + | 160.0 | 2,8 | 3,5 |
| FP-LRH-250,0 | 450 | /files/large/0304f3084385d4c6ec868cddf039f122.jpg | 1615 | 2 1/4" | 2 1/4" | 2 | + | 250.0 | 2,8 | 3,5 |
