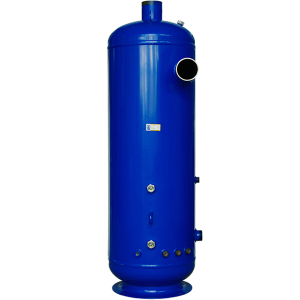

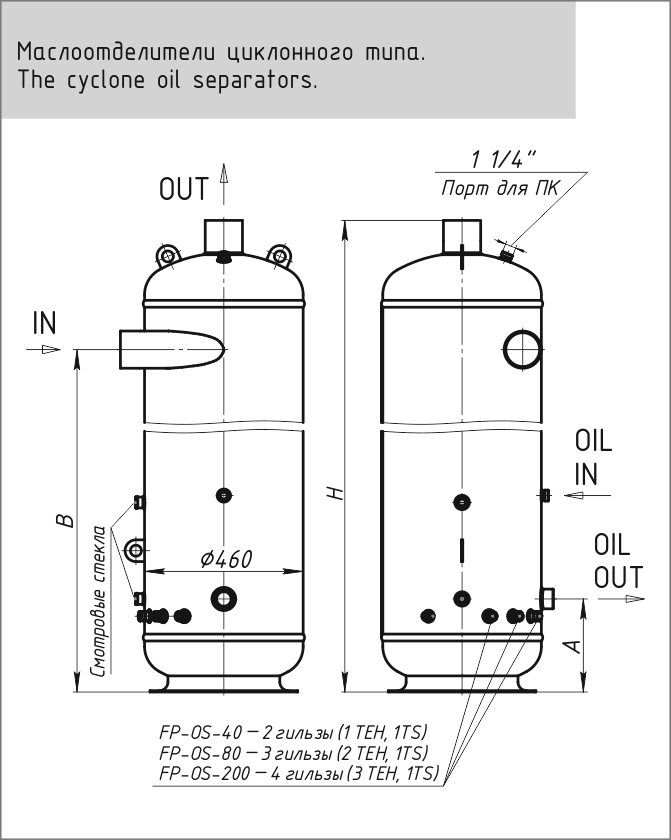

Oil separator. Cyclone type

Separators cyclone type 40 liters and 200 liters have bearing cycle platform
Model Diameter, mm Height, mm In Out ORP SVP, 1 1/4" Volume, L Working pressure, MPa Testing pressure, MPa OS_Coefficient_A OS_Coefficient_B Certificate_EAC
FP-OS-80,0-318 325 1170 3 1/8'' 3 1/8'' + + 80,0 2,8 3,5 -0,1845 95,46125 /files/large/21d8f4f9f7a6a8b4aa2327fbcd89d6dc.jpg
FP-OS-200-418 450 1480 4 1/8'' 4 1/8'' + + 200 2,8 3,5 -0,0827 80,43574 /files/large/21d8f4f9f7a6a8b4aa2327fbcd89d6dc.jpg
