Ball valve FP-BV
Ball valve FP-BV designed for locking and cutoff device refrigeration circuit that allows timely service and facilitates the replacement of equipment on the suction, discharge and liquid line. Ball valves provide tight shut. All valves are tested for strength and tightness.
| Technical documentation >>
| Technical documentation >>

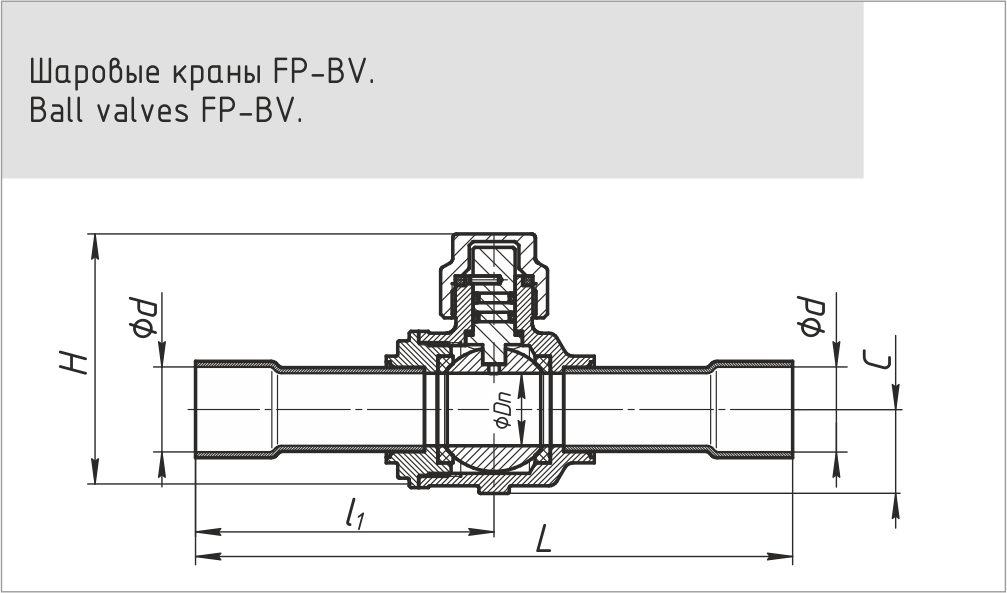

| Model | In | Out | Length, mm | Height, mm | Working pressure, MPa | Kv m³/h |
|---|---|---|---|---|---|---|
| FP-BV-014 | 1/4" | 1/4" | 138 | 56 | 4,5 | 1,2 |
| FP-BV-038 | 3/8" | 3/8" | 138 | 52 | 4,5 | 3,8 |
| FP-BV-012 | 1/2" | 1/2" | 138 | 52 | 4,5 | 7,8 |
| FP-BV-058 | 5/8" | 5/8" | 138 | 52 | 4,5 | 12 |
| FP-BV-034 | 3/4" | 3/4" | 156 | 68 | 4,5 | 22 |
| FP-BV-078 | 7/8" | 7/8" | 156 | 68 | 4,5 | 28 |
| FP-BV-118 | 1 1/8" | 1 1/8" | 225 | 109 | 4,5 | 43 |
| FP-BV-138 | 1 3/8" | 1 3/8" | 235 | 109 | 4,5 | 74 |
| FP-BV-158 | 1 5/8" | 1 5/8" | 235 | 109 | 4,5 | 125 |
| FP-BV-218 | 2 1/8" | 2 1/8" | 269 | 134 | 4,5 | 195 |
| FP-BV-258 | 2 5/8" | 2 5/8" | 299 | 134 | 4,5 | 220 |
| FP-BV-318 | 3 1/8" | 3 1/8" | 326 | 154 | 4,5 | 310 |
