Vertical recievers. 25,0...350,0

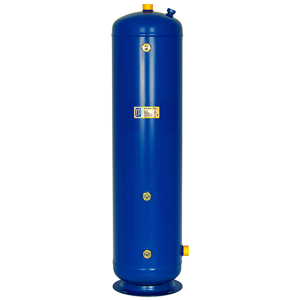

Vertical receivers range FP-LR presented by models from 25,0 to 350,0 liters. To install receivers there are four holes located around the circumference of the annular supporting area. All Type C receivers equipped with safety valve port and sight glass port (1-3 pcs starting from FP-LR-25,0).
| Technical documentation >>
| Technical documentation >>
Model | Diameter, mm | Height, mm | In | Out | Sight glass, 1 1/4'' | SVP, 1 1/4" | Volume, L | Working pressure, MPa | Testing pressure, MPa | Certificate_EAC | Certificate_CE |
---|---|---|---|---|---|---|---|---|---|---|---|
FP-LR-25,0 | 240 | 638 | 1 1/4" UN | 1 1/4" UN | 1 | + | 25.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
FP-LR-32,5 | 240 | 847 | 1 1/4" UN | 1 1/4" UN | 1 | + | 32.5 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
FP-LR-40,0 | 240 | 964 | 1 1/4" UN | 1 1/4" UN | 2 | + | 40.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
FP-LR-50,0 | 325 | 731 | 1 3/4" UN | 1 3/4" UN | 2 | + | 50.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
FP-LR-63,0 | 325 | 876 | 1 3/4" UN | 1 3/4" UN | 2 | + | 63.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
FP-LR-80,0 | 325 | 1111 | 1 3/4" UN | 1 3/4" UN | 2 | + | 80.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
FP-LR-100,0 | 325 | 1301 | 1 3/4" UN | 1 3/4" UN | 3 | + | 100.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
FP-LR-120,0 | 325 | 1551 | 1 3/4" UN | 1 3/4" UN | 3 | + | 120.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/4660bbeca173555 |
FP-LR-160,0 | 450 | 1140 | 2 1/4" UN | 2 1/4" UN | 3 | + | 160.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/4660bbeca173555 |
FP-LR-200,0 | 450 | 1430 | 2 1/4" UN | 2 1/4" UN | 3 | + | 200.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/4660bbeca173555 |
FP-LR-250,0 | 450 | 1590 | 2 1/4" UN | 2 1/4" UN | 3 | + | 250.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/4660bbeca173555 |
FP-LR-300,0 | 450 | 2050 | 89 mm ODS (St) | 89 mm ODS (St) | 4 | + | 300.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/4660bbeca173555 |
FP-LR-350,0 | 450 | 2350 | 89 mm ODS (St) | 89 mm ODS (St) | 4 | + | 350.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/4660bbeca173555 |
FP-LR(MP)-25,0 | 240 | 638 | 1 1/4" UN | 1 1/4" UN | 1 | + | 25.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
FP-LR(MP)-32,5 | 240 | 847 | 1 1/4" UN | 1 1/4" UN | 1 | + | 32.5 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
FP-LR(MP)-40,0 | 240 | 964 | 1 1/4" UN | 1 1/4" UN | 2 | + | 40.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
FP-LR(MP)-50,0 | 325 | 731 | 1 3/4" UN | 1 3/4" UN | 2 | + | 50.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
FP-LR(MP)-63,0 | 325 | 876 | 1 3/4" UN | 1 3/4" UN | 2 | + | 63.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
FP-LR(MP)-80,0 | 325 | 1111 | 1 3/4" UN | 1 3/4" UN | 2 | + | 80.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/4660bbeca173555 |
FP-LR(MP)-100,0 | 325 | 1301 | 1 3/4" UN | 1 3/4" UN | 3 | + | 100.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/4660bbeca173555 |
FP-LR(MP)-120,0 | 325 | 1551 | 1 3/4" UN | 1 3/4" UN | 3 | + | 120.00 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/4660bbeca173555 |
FP-LR(MP)-160,0 | 450 | 1140 | 2 1/4" UN | 2 1/4" UN | 3 | + | 160.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/4660bbeca173555 |
FP-LR(MP)-200,0 | 450 | 1430 | 2 1/4" UN | 2 1/4" UN | 3 | + | 200.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/4660bbeca173555 |
FP-LR(MP)-250,0 | 450 | 1590 | 2 1/4" UN | 2 1/4" UN | 3 | + | 250.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/4660bbeca173555 |
