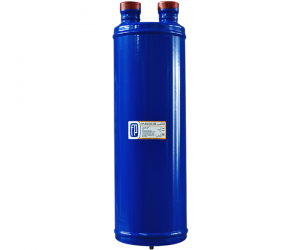

Liquid separators. 2,0...9,0

Sucti online accumulators main purpose – deliver refrigerant to a compressor only as a gas. All units with flooded evaporators need this item, as well as system with overheated evaporators to prevent liquid refrigerant accumulation in suction line. Apart from liquid separation suction accumulators provides oil return to compressor . Suction accumulator using provides protection from wet compression and hydroblows, guarantees mechanical intactness of the cooling system.

Suction accumulators range presented by models from 2,0 to 45,0 liters of two types - type B and type C. A fastener of types C from 2,0 to 7,0 liters is central pin with thread M8, and to install type B from 12,0 to 45,0 there are four holes l ocat ed around t he c i rc umferenc e of t he annul ar supporting area. All oil separators have inch inlet/outlet copper connections.
Model Diameter, mm Qo(R410A) Qo(R134A) Qo(R22/R407C) Qo(R507/R404A) Height, mm Distance A, mm In Out SVP, 1 1/4" Volume, L Working pressure, MPa Testing pressure, MPa Certificate_EAC Certificate_CE
FP-AS-2,0-012 102 6 4 7 4.5 326 55 1/2" 1/2" - 2.0 1,6 2,5 http://www.frigopoint.com/files/download/b41d3ff421e4366 http://www.frigopoint.com/files/download/9be31a677e44f2c
FP-AS-2,0-058 102 9 6 10 7 326 55 5/8" 5/8" - 2.0 1,6 2,5 http://www.frigopoint.com/files/download/b41d3ff421e4366 http://www.frigopoint.com/files/download/9be31a677e44f2c
FP-AS-3,5-078 102 21 15 25 16 526 55 7/8" 7/8" - 3.5 1,6 2,5 http://www.frigopoint.com/files/download/b41d3ff421e4366 http://www.frigopoint.com/files/download/9be31a677e44f2c
FP-AS-3,5-118 102 36 25 41 27 526 55 1 1/8" 1 1/8" - 3.5 1,6 2,5 http://www.frigopoint.com/files/download/b41d3ff421e4366 http://www.frigopoint.com/files/download/9be31a677e44f2c
FP-AS-5,0-118 133 25 41 27 36 443 70 1 1/8" 1 1/8" - 5.0 1,6 2,5 http://www.frigopoint.com/files/download/b41d3ff421e4366 http://www.frigopoint.com/files/download/9be31a677e44f2c
FP-AS-5,0-138 133 56 37 65 43 443 70 1 3/8" 1 3/8" - 5.0 1,6 2,5 http://www.frigopoint.com/files/download/b41d3ff421e4366 http://www.frigopoint.com/files/download/9be31a677e44f2c
FP-AS-7,0-138 159 37 65 43 56 440 90 1 3/8" 1 3/8" - 7.0 1,6 2,5 http://www.frigopoint.com/files/download/b41d3ff421e4366 http://www.frigopoint.com/files/download/9be31a677e44f2c
FP-AS-7,0-158 159 84 100 61 64 440 90 1 5/8" 1 5/8" - 7.0 1,6 2,5 http://www.frigopoint.com/files/download/b41d3ff421e4366 http://www.frigopoint.com/files/download/9be31a677e44f2c
FP-AS-9,0-158 159 84 61 100 64 560 90 1 5/8" 1 5/8" - 9.0 1,6 2,5 http://www.frigopoint.com/files/download/b41d3ff421e4366 http://www.frigopoint.com/files/download/9be31a677e44f2c
FP-AS(MP)-2,0-012 102 6 7 4 4,5 326 55 1/2" 1/2" - 2.0 4,5 6,0 http://www.frigopoint.com/files/download/b41d3ff421e4366 http://www.frigopoint.com/files/download/9be31a677e44f2c
FP-AS(MP)-2,0-058 102 9 10 6 7 326 55 5/8" 5/8" - 2.0 4,5 6,0 http://www.frigopoint.com/files/download/b41d3ff421e4366 http://www.frigopoint.com/files/download/9be31a677e44f2c
FP-AS(MP)-3,5-078 102 21 25 15 16 526 55 7/8" 7/8" - 3.5 4,5 6,0 http://www.frigopoint.com/files/download/b41d3ff421e4366 http://www.frigopoint.com/files/download/9be31a677e44f2c
FP-AS(MP)-3,5-118 102 36 41 25 27 526 55 1 1/8" 1 1/8" - 3.5 4,5 6,0 http://www.frigopoint.com/files/download/b41d3ff421e4366 http://www.frigopoint.com/files/download/9be31a677e44f2c
FP-AS(MP)-5,0-118 133 36 41 25 27 443 70 1 1/8" 1 1/8" - 5.0 4,5 6,0 http://www.frigopoint.com/files/download/b41d3ff421e4366 http://www.frigopoint.com/files/download/9be31a677e44f2c
FP-AS(MP)-5,0-138 133 56 65 37 43 443 70 1 3/8" 1 3/8" - 5.0 4,5 6,0 http://www.frigopoint.com/files/download/b41d3ff421e4366 http://www.frigopoint.com/files/download/9be31a677e44f2c
FP-AS(MP)-7,0-138 159 56 65 37 43 440 90 1 3/8" 1 3/8" - 7.0 4,5 6,0 http://www.frigopoint.com/files/download/b41d3ff421e4366 http://www.frigopoint.com/files/download/9be31a677e44f2c
FP-AS(MP)-7,0-158 159 84 100 61 64 560 90 1 5/8" 1 5/8" - 7.0 4,5 6,0 http://www.frigopoint.com/files/download/b41d3ff421e4366 http://www.frigopoint.com/files/download/9be31a677e44f2c
FP-AS(MP)-9,0-158 159 84 100 61 64 560 90 1 5/8" 1 5/8" - 9.0 4,5 6,0 http://www.frigopoint.com/files/download/b41d3ff421e4366 http://www.frigopoint.com/files/download/9be31a677e44f2c
