Vertical recievers. 1,0...1,6

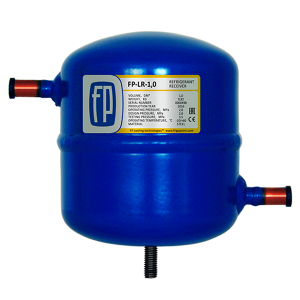

Vertical receivers FP-LR presented by models from 1,0 to 1,6 liters. A receivers is central pin with thread M8.
| Technical documentation >>
| Technical documentation >>
| Model | Diameter, mm | Height, mm | In | Out | Sight glass, 1 1/4'' | SVP, 1 1/4" | Volume, L | Working pressure, MPa | Testing pressure, MPa | Certificate_EAC | Certificate_CE |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FP-LR-1,0 | 102 | 121 | 3/8" ODS (Cu) | 3/8" ODS (Cu) | – | – | 1.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
| FP-LR-1,6 | 133 | 139 | 3/8" ODS (Cu) | 3/8" ODS (Cu) | – | – | 1.6 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
| FP-LR(MP)-1,0 | 102 | 121 | 3/8" ODS (Cu) | 3/8" ODS (Cu) | - | - | 1.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
| FP-LR(MP)-1,6 | 133 | 139 | 3/8" ODS (Cu) | 3/8" ODS (Cu) | - | - | 1.6 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
