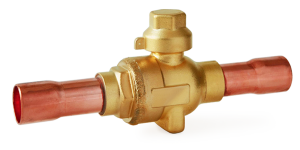

Ball valves

Ball valve FP-BV designed for locking and cutoff device refrigeration circuit that allows timely service and facilitates the replacement of equipment on the suction, discharge and liquid line. Ball valves provide tight shut. All valves are tested for strength and tightness.

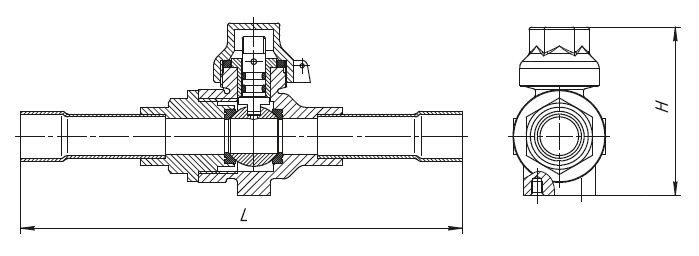

Model In Out Length, mm Height, mm Working pressure, MPa Testing pressure, MPa
FP-BV-014 1/4" 1/4" 165 55 4,8 5,8
FP-BV-038 3/8" 3/8" 165 55 4,8 5,8
FP-BV-012 1/2" 1/2" 165 55 4,5 5,8
FP-BV-058 5/8" 5/8" 165 55 4,8 5,8
FP-BV-034 3/4" 3/4" 184 67 4,8 5,8
FP-BV-078 7/8" 7/8" 184 67 4,8 5,8
FP-BV-118 1 1/8" 1 1/8" 216 76 4,8 5,8
FP-BV-138 1 3/8" 1 3/8" 235 94 4,8 5,8
FP-BV-158 1 5/8" 1 5/8" 254 109 4,8 5,8
FP-BV-218 2 1/8" 2 1/8" 289 134 4,8 5,8
FP-BV-258 2 5/8" 2 5/8" 327 134 4,8 5,8
FP-BV-318 3 1/8" 3 1/8" 365 154 4,8 5,8
