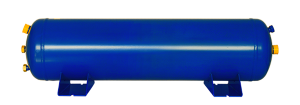

Horizontal recievers. 100,0...250,0
The use of horizontal receivers implies greater freedom in the design and installation of equipment. Horizontal receiver is a universal platform for the various configuration refrigeration. Compactness receivers, simplicity and ease of mount allows using them in different refrigeration units, stations of different models of refrigeration and air-conditioning systems.
| Technical documentation >>
| Technical documentation >>
| Model | Diameter, mm | Length, mm | In | Out | Sight glass, 1 1/4'' | SVP, 1 1/4" | Volume, L | Working pressure, MPa | Testing pressure, MPa | Certificate_EAC | Certificate_CE |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FP-LRH-100,0 | 325 | 1310 | 1 3/4" UN | 1 3/4" UN | 2 | + | 100.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
| FP-LRH-120,0 | 325 | 1560 | 1 3/4" UN | 1 3/4" UN | 2 | + | 120.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/4660bbeca173555 |
| FP-LRH-160,0 | 450 | 1165 | 2 1/4" UN | 2 1/4" UN | 2 | + | 160.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/4660bbeca173555 |
| FP-LRH-200,0 | 450 | 1455 | 2 1/4" UN | 2 1/4" UN | 2 | + | 200.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/4660bbeca173555 |
| FP-LRH-250,0 | 450 | 1615 | 2 1/4" UN | 2 1/4" UN | 2 | + | 250.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/4660bbeca173555 |
| FP-LRH-300,0 | 450 | 2025 | 89 mm ODS | 89 mm ODS | 3 | + | 300.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/4660bbeca173555 |
| FP-LRH-350,0 | 450 | 2325 | 89 mm ODS | 89 mm ODS | 3 | + | 350.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/4660bbeca173555 |
| FP-LRH(MP)-100,0 | 325 | 1310 | 1 3/4" UN | 1 3/4" UN | 2 | + | 100.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/4660bbeca173555 |
| FP-LRH(MP)-120,0 | 325 | 1560 | 1 3/4" UN | 1 3/4" UN | 2 | + | 120.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/4660bbeca173555 |
| FP-LRH(MP)-160,0 | 450 | 1165 | 2 1/4" UN | 2 1/4" UN | 2 | + | 160.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/4660bbeca173555 |
| FP-LRH(MP)-200,0 | 450 | 1455 | 2 1/4" UN | 2 1/4" UN | 2 | + | 200.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/4660bbeca173555 |
| FP-LRH(MP)-250,0 | 450 | 1615 | 2 1/4" UN | 2 1/4" UN | 2 | + | 250.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/4660bbeca173555 |
