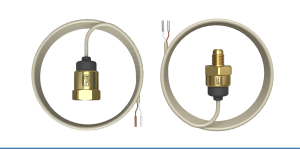

Pressure sensors FP-PT, FP-PTR

Pressure sensors FP-PT are fitted to the pressure side and the suction side of the refrigerant circuit, c to measure gage pressure. The main function of the sensors is to transform the working pressure range in a unified signal.
| Technical documentation >>Model | Pressure range | Connection | Accuracy | Power Supply, V | Output signal | Temperature range |
---|---|---|---|---|---|---|
FP-PT-10A(B)(W) | -0,5...10 бар | 7/16"-20UNF | ≤1.0% от диапазона измерения | = 11...36 | 4...20 мА | -40...90 °С |
FP-PT-35A(B)(W) | 0...35 бар | 7/16"-20UNF | ≤1.0% от диапазона измерения | = 11...36 | 4...20 мА | -40...90 °С |
FP-PTR-10 А(B)(W) | -0,5...10 бар | 7/16"-20UNF | ≤1.0% от диапазона измерения | = 3...5,5 | 0,5…4,5 при Uп=5 В | -40...90 °С |
FP-PTR-35 А(B)(W) | 0...35 бар | 7/16"-20UNF | ≤1.0% от диапазона измерения | = 3...5,5 | 0,5…4,5 В при Uп=5 В | -40...90 °С |
FP-PT-45A(B)(W) | 0...45 бар | 7/16"-20UNF | ≤1.0% от диапазона измерения | = 11...36 | 4...20 мА | -40...90 °С |
